Santa Cruz

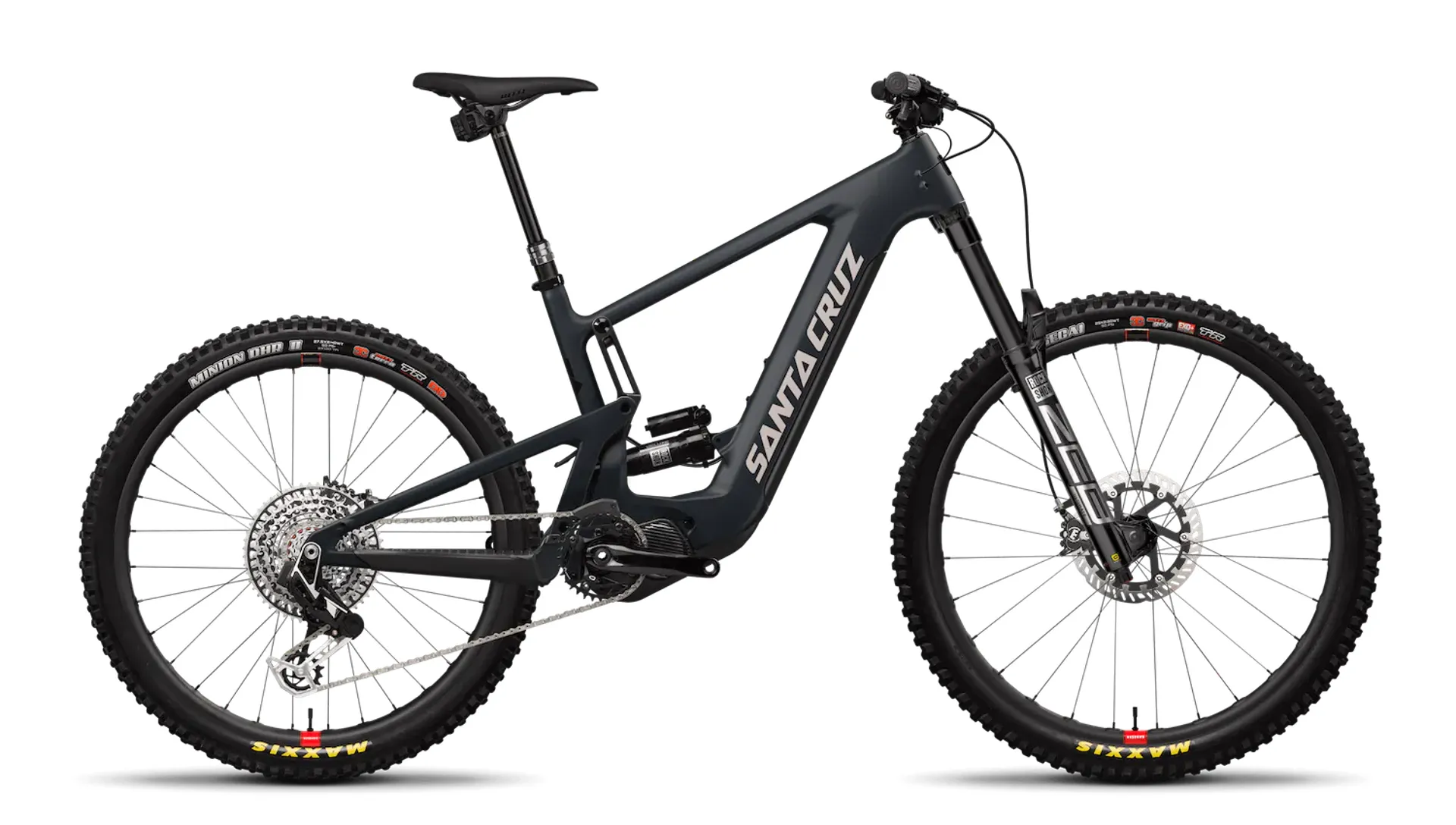

Santa Cruz Heckler C GX AXS Matt Dark Pewter

£8,599.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Santa Cruz Heckler C GX AXS Matt Dark Pewter

Season:2024

Brand:Santa Cruz

Code:SC-58-24251-565301DP

What they say
On and on and on and on...

The full-power Heckler ebike is the definitive all-day capable, trail focused, gravity inclined ebike. Its torquey motor and huge 720Wh battery allows riders to access previously unreachable trails, unlock less-used trails and cramming more into less time.
Available in: C and CC carbon
Wheel size: MX and 29
Front travel: 160mm
Rear travel: 150mm
Drive Unit: Shimano EP801
Battery size: 720Wh

NEVER STOP HECKLING
Full-power driveunit and a big battery make for more fun
The thing that sets our ebikes apart from the rest of the pack is the ride quality. We sweat the carbon layup, frame design and suspension kinematics so they're tough enough to handle the many miles you'll cover on them, while also making sure your connection with the trail is seamless.

FULL-POWER
The Shimano EP801 system provides 85 Nm of max torque and peak power up to 600 Watts. This makes the latest generation of Shimano systems one of the most powerful systems available.

LONG RANGE
The Heckler pairs this mighty motor with a huge 720 Wh battery that can be removable for hot swaps or charging. Your arms will be tired before the battery runs dry.

CONTROL AT YOUR FINGERTIPS
Four assist modes (Walk, Eco, Trail, Boost) are accessible via an ergonomic switch on the handlebars. The Shimano ETUBE PROJECT app also allows riders the ability to fully customize the system support wirelessly.

R - Base model with same tires and big rotors as all HECKLER. Quality suspension, just without all the external tuning dials.
S - Upgraded wheels, headset, and dropper post. Upgraded suspension with more adjustment, SRAM Eagle cable-operated drivetrain and four-piston SRAM Code brakes.
GX - Full SRAM GX Eagle electronic Transmission and powerful SRAM Code brakes.
GX AXS RSV - Full SRAM GX Eagle electronic Transmission, SRAM Code brakes and legendary carbon Reserve wheels
X0 AXS - CC carbon frame, full SRAM X0 Transmission electronic drivetrain, top spec suspension and SRAM Code brakes
X0 AXS RSV - CC carbon frame, full SRAM X0 Transmission electronic drivetrain, top spec suspension and SRAM brakes, plus legendary carbon Reserve wheels.
XX AXS RSV - Top spec SRAM XX Transmission and legendary carbon Reserve wheels.
Technical Information

Features

  • Fork Travel: 160mm
  • Fork Compatibility: 150mm-170mm
  • Frame Travel: 150mm
  • Shock Size: 210x55
  • ICSG-05 Tabs: Yes
  • Brake Mounts: DM 200mm - 1.5mm spacer needed for 203mm rotors - IE Shimano
  • Headset: Integrated (IS41/52)
  • Seatpost Diameter: 31.6mm
  • Seat Clamp Diameter: 36.4mm
  • BB Shell: 73mm Threaded
  • Max Tyre Size: 2.6"
  • Max Chaingring Size: 36t
  • Shock Mounting Bushing Front: 30x8 (standard bushing)
  • Shock Mounting Bushing Rear: 30x8 (roller bearing)
  • Derailleur Hanger: SRAM UDH

Santa Cruz Heckler Carbon C - GX AXS MX Kit

Fork
RockShox Zeb Select+, 160mm -or- Fox 36 Performance Elite		Shock
Rockshox Super Deluxe Select+		Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Shifter
SRAM AXS Pod Bridge		Crankset
Shimano EM900 HollowTech Crank Arms 165mm		Cassette
SRAM GX Eagle T-Type, 10-52t
Chain
SRAM GX Eagle T-Type, Flattop, 12spd		Brakes
SRAM Code Bronze Stealth		Rotors
SRAM HS2 200mm
Handlebars
Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise		Stem
Burgtec Enduro MK3		Grips
Santa Cruz House Grips
Headset
Cane Creek 40 IS Integrated Headset		Seatpost
OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer		Saddle
WTB Silverado Medium Cromoly SL Fusion Saddle or WTB Volt
Front Tyre
Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+, TR (Size Small is 27.5")		Rear Tyre
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, DD, TR		Front Hub
IE13 SL, 15x110, Torque Cap, 6-Bolt, 32h
Rear Hub
E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h		Rims
RaceFace ARC HD 30 29” (F), 27.5” (R) (Size Small is 27.5” Front and Rear)		Spokes
Sapim Race
Battery
720Wh Integrated, Removable Battery		Drive Unit
Shimano Drive Unit DU-EP800		Display
Shimano
Remote
Shimano E7000 Mode Switch		Charger
Darfon Charger
Sizing Information

Frame Sizing

If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

Please note, the Small frame comes with 27.5" wheels only.

The Heckler MX is available in sizes medium - extra extra large (M-XXL).

The Heckler 29 is available in sizes medium - extra extra large (M-XXL).
