Santa Cruz

Santa Cruz Heckler SL C R-Kit Magenta

£6,699.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

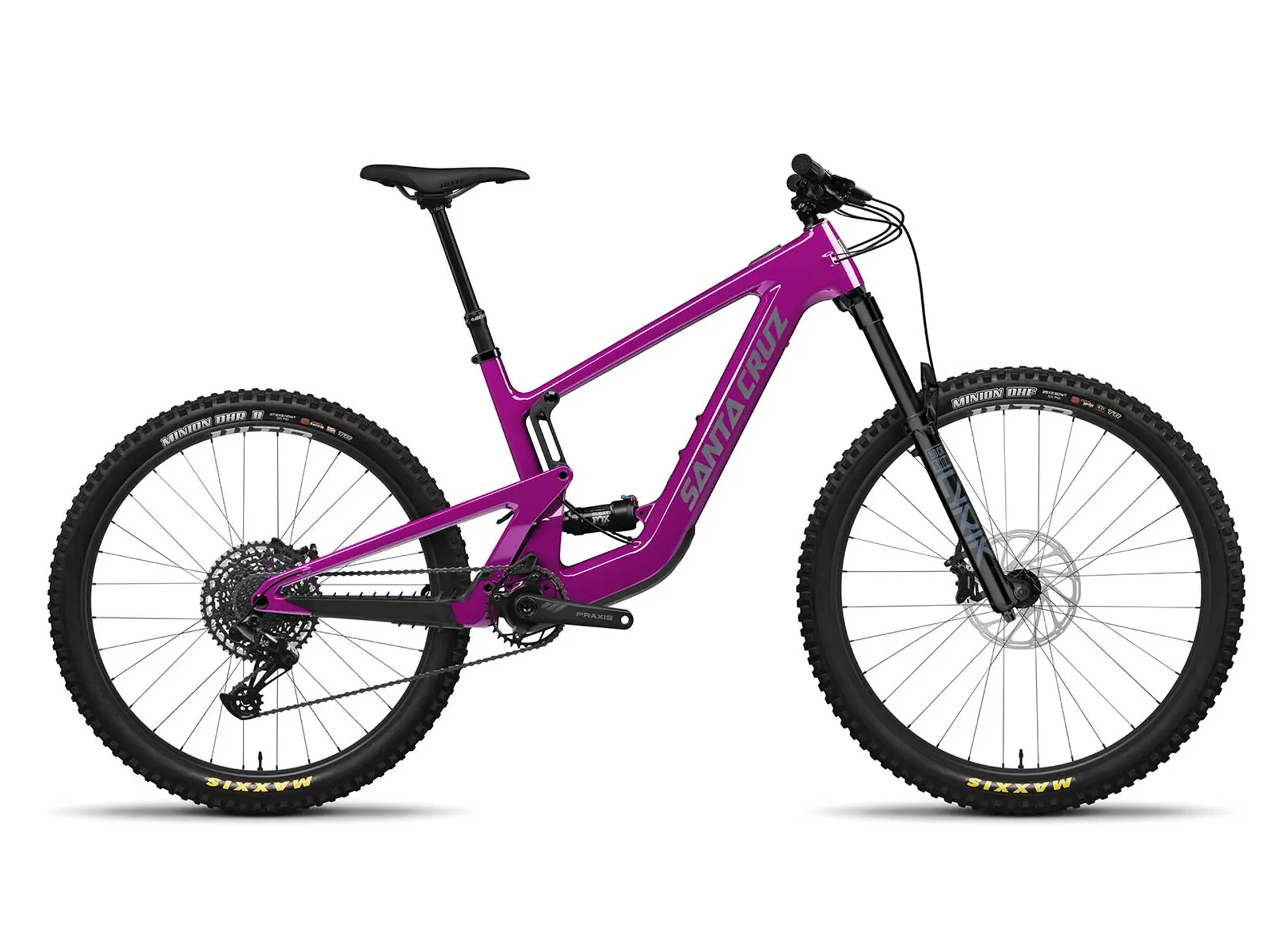

Santa Cruz Heckler SL C R-Kit Magenta

Season:2024

Brand:Santa Cruz

Code:SC-58-24298-147-825

What they say


Fast, light or powerful - choose all three

A sneaky ebike that's lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.
Available in: C & CC Carbon
Wheel Size: MX
Front Travel: 160mm
Rear Travel: 150mm
Drive Unit: FAZUA RIDE 60
Battery Size: 430 Wh

MIDDLEWEIGHT CHAMPION OF THE WORLD

A trail bike with hidden super powers
The Heckler SL's trim weight and the FAZUA RIDE 60 motor's natural feeling torque delivery feels like riding a normal mountain bike. Just with more punch. The range is similar to the full-power bikes because even though the battery is smaller, the RIDE 60 motor sips energy, and the significantly lighter bike makes the job of propulsion easier.

FAZUA RIDE 60
The tough, light, smooth carbon frame contains the 430Wh battery and quiet, frictionless FAZUA RIDE 60 motor.
Power at your fingertips

With three power modes available at the touch of the ring controller you choose how much push you want and how much range you get.

Customize via app

Customize your ride modes and access more information via the FAZUA app.

R - Base model with same tires and big rotors as all Heckler SL. Quality suspension, just without all the external tuning dials.
S - Upgraded wheels, headset, and dropper post. Suspension with more adjustment, SRAM Eagle cable-operated drivetrain and 4-piston SRAM brakes.
GX AXS - Full SRAM GX Eagle electronic Transmission and the most powerful SRAM Maven brakes.
X0 AXS - CC carbon frame, full SRAM X0 T-TYPE electronic drivetrain, top spec suspension and Industry Nine hubs and powerful SRAM Maven Silver Stealth brakes
X0 AXS RSV - CC carbon frame, full SRAM X0 T-TYPE electronic drivetrain, top spec suspension and SRAM Maven Silver Stealth brakes, plus legendary carbon Reserve wheels on Industry Nine hubs.



Technical Information

Santa Cruz Heckler SL Features

  • Suspension System: VPP
  • Front Derailleur: No compatibility
  • Headset/Headtube: Integrated (IS41/52)
  • Seat Post: 31.6mm
  • Seat Clamp: 36.4mm
  • Eye to Eye length: 210
  • Stroke: 55
  • Fork Compatibility: 160mm
  • BB Shell: 73mm Threaded
  • Max Tire Size: 2.6"
  • Water Bottle Mounts: 1
  • Brake Mounts: DM 200mm
  • Max Chainring Size: tbc
  • Derailleur Hanger: SRAM UDH
  • Shock Mounting Bushing Front: 30x8 (standard bushing)
  • Shock Mounting Bushing Rear: 30x8 (roller bearing)

Santa Cruz Heckler SL Carbon C - R MX Kit

Fork
RockShox Lyrik Base, 160mm		Shock
FOX Float Performance, 210x55		Rear Derailleur
SRAM NX Eagle, 12spd
Shifter
SRAM NX		Crankset
Praxis eTor AL, 104BCD, 165mm		Cassette
SRAM PG1230, 12spd, 11-50t
Chain
SRAM NX Eagle, 12spd		Brakes
SRAM DB8		Rotors
Avid Centerline 200mm
Handlebars
E13 TRS Base		Stem
E13 Base		Grips
Santa Cruz House Grips
Headset
FSA IS-2/47/42 ACB		Seatpost
SDG Tellis		Saddle
WTB Silverado Medium, CroMo
Front Tyre
Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO		Rear Tyre
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+		Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, HG, 32h		Rims
WTB ST i30 TCS 2.0		Spokes
Sapim Race
Battery
Fazua 430 Wh Integrated Battery		Drive Unit
Fazua Ride60		Display
Fauza Integrated Top Tube Display
Remote
Fauza		Charger
Fauza
Sizing Information

Geometry

All units are in millimeters or degrees.

SMLXLXXL
Reach |hi/lo435/432.4460/457.4480/477.5500/497.4525/522.5
Stack614.9/616.8624/625.8633/634.9651/653664.5/666.5
Head Tube Angle64.3/6464.3/6464.3/6464.3/6464.3/64
Seat Tube Length380/380405/405430/430460/460500/500
Front Center766.1/765.9795.4/795.3819.7/819.6848.4/848.3879.9/879.8
BB Height344/340.7344/340.7344/340.7344/340.7344/340.7
BB Drop (front)28.5/31.828.5/31.828.5/31.828.5/31.828.5/31.8
BB Drop (rear)9.9/13.39.9/13.39.9/13.39.9/13.39.9/13.3
Wheelbase1209.1/1209.71238.4/1239.11262.7/1263.41294.4/1295.11329.9/1330.5
Rear Center443/443.8443/443.8443/443.8446/446.8450/450.7
Head Tube Length100110120140155
Top Tube Length569.2/579.6602.7/602.9620.6/621.5641.8/642.7669.1/670
Seat Tube Angle76.8/76.677.1/76.977.5/77.277.7/77.577.8/77.5
Standover Height720.1/716.2733/728.8733.4/729.3731.7/731.6741/738.6
