Santa Cruz

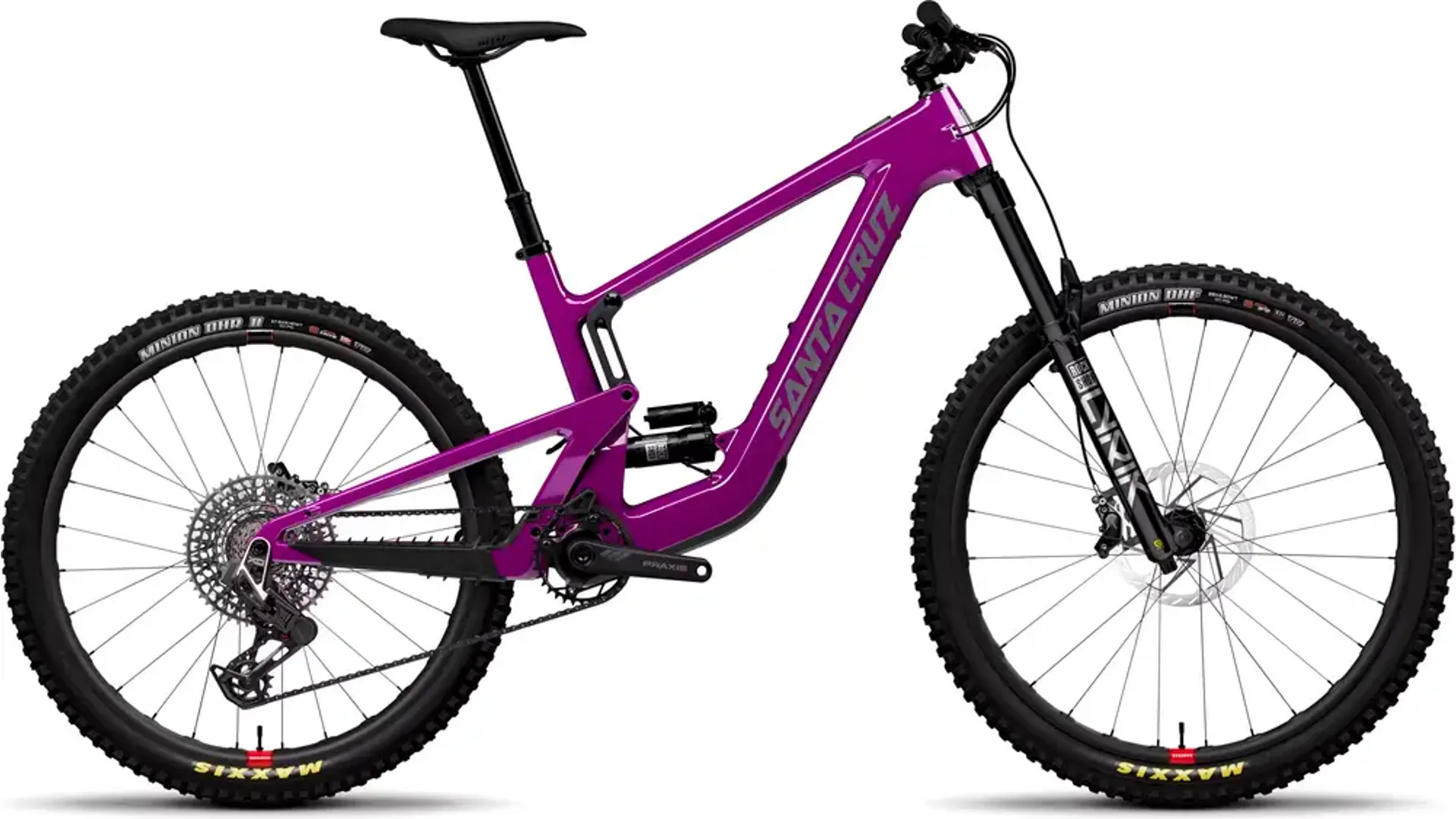

Santa Cruz Heckler SL CC X0 AXS RSV Magenta

£10,299.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Santa Cruz Heckler SL CC X0 AXS RSV Magenta

Season:2024

Brand:Santa Cruz

Code:SC-58-24299-187-825

What they say

Fast, light or powerful - choose all three

A sneaky ebike that's lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.
Available in: C & CC Carbon
Wheel Size: MX
Front Travel: 160mm
Rear Travel: 150mm
Drive Unit: FAZUA RIDE 60
Battery Size: 430Wh
MIDDLEWEIGHT CHAMPION OF THE WORLD.

A trail bike with hidden super powers
The Heckler SL's trim weight and the FAZUA RIDE 60 motor's natural feeling torque delivery feels like riding a normal mountain bike. Just with more punch. The range is similar to the full-power bikes because even though the battery is smaller, the RIDE 60 motor sips energy, and the significantly lighter bike makes the job of propulsion easier.

FAZUA RIDE 60
The tough, light, smooth carbon frame contains the 430 Wh battery and quiet, frictionless FAZUA RIDE 60 motor.
Power at your fingertips

With three power modes available at the touch of the ring controller you choose how much push you want and how much range you get.

Customize via app

Customize your ride modes and access more information via the FAZUA app.
R - Base model with same tires and big rotors as all Heckler SL. Quality suspension, just without all the external tuning dials.
S - Upgraded wheels, headset, and dropper post. Suspension with more adjustment, SRAM Eagle cable-operated drivetrain and 4-piston SRAM brakes.
GX AXS - Full SRAM GX Eagle electronic Transmission and the most powerful SRAM Maven brakes.
X0 AXS - CC carbon frame, full SRAM X0 T-TYPE electronic drivetrain, top spec suspension and Industry Nine hubs and powerful SRAM Maven Silver Stealth brakes
X0 AXS RSV - CC carbon frame, full SRAM X0 T-TYPE electronic drivetrain, top spec suspension and SRAM Maven Silver Stealth brakes, plus legendary carbon Reserve wheels on Industry Nine hubs.
Technical Information

Santa Cruz Heckler SL Features

  • Suspension System: VPP
  • Front Derailleur: No compatibility
  • Headset/Headtube: Integrated (IS41/52)
  • Seat Post: 31.6mm
  • Seat Clamp: 36.4mm
  • Eye to Eye length: 210
  • Stroke: 55
  • Fork Compatibility: 160mm
  • BB Shell: 73mm Threaded
  • Max Tire Size: 2.6"
  • Water Bottle Mounts: 1
  • Brake Mounts: DM 200mm
  • Max Chainring Size: tbc
  • Derailleur Hanger: SRAM UDH
  • Shock Mounting Bushing Front: 30x8 (standard bushing)
  • Shock Mounting Bushing Rear: 30x8 (roller bearing)


Santa Cruz Heckler SL Carbon CC - XO AXS Reserve

Fork
RockShox Lyrik Ultimate, 160mm		Shock
RockShox Super Deluxe Ultimate		Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12spd
Shifter
SRAM AXS Pod Bridge		Crankset
Praxis eTor AL, 104BCD, 165mm		Cassette
SRAM X0 Eagle T-Type, 10-52t
Chain
SRAM X0 Eagle T-Type, Flattop, 12spd		Brakes
SRAM Code Silver Stealth		Rotors
SRAM HS2 200mm
Handlebars
Santa Cruz 35 Carbon Bar, 800mm		Stem
Burgtec Enduro MK3		Grips
Santa Cruz House Grips
Headset
Cane Creek 40 IS Integrated Headset		Seatpost
OneUp V2 Dropper Post, 31.6		Saddle
WTB Silverado Medium, Ti
Front Tyre
Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO		Rear Tyre
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+		Front Hub
Industry Nine 1/1, 110x15, 6 Bolt, 32h
Rear Hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 32h		Rims
Reserve 30|HD		Spokes
Sapim D-Light
Battery
Fazua 430 Wh Integrated Battery		Drive Unit
Fazua Ride60		Display
Fauza Integrated Top Tube Display
Remote
Fauza		Charger
Fauza
Sizing Information
SMLXLXXL
SMLXLXXL
Rider Height5'0"+5'4"+5'9"+6'1"+6'3"+
Reach432mm457mm478mm497mm523mm
Stack617mm626mm635mm653mm667mm
Head Tube Angle64°64°64°64°64°
Seat Tube Length380mm405mm430mm460mm500mm
Front Center766mm795mm820mm848mm880mm
BB Height341mm341mm341mm341mm341mm
BB Drop32mm(F)/13mm(R)32mm(F)/13mm(R)32mm(F)/13mm(R)32mm(F)/13mm(R)32mm(F)/13mm(R)
Wheelbase1210mm1239mm1263mm1295mm1331mm
Chainstay Length444mm444mm444mm447mm451mm
Head Tube Length100mm110mm120mm140mm155mm
Top Tube Length580mm603mm622mm643mm670mm
Seat Tube Angle76.6°76.9°77.2°77.5°77.5°
Standover Height716mm729mm729mm732mm739mm
Eye to Eye Length210210210210210
