The Patron eRIDE 920 was designed as a system optimized for all day trail riding.
The Patron eRIDE 920 was designed as a system optimized for all day trail riding.
Scott

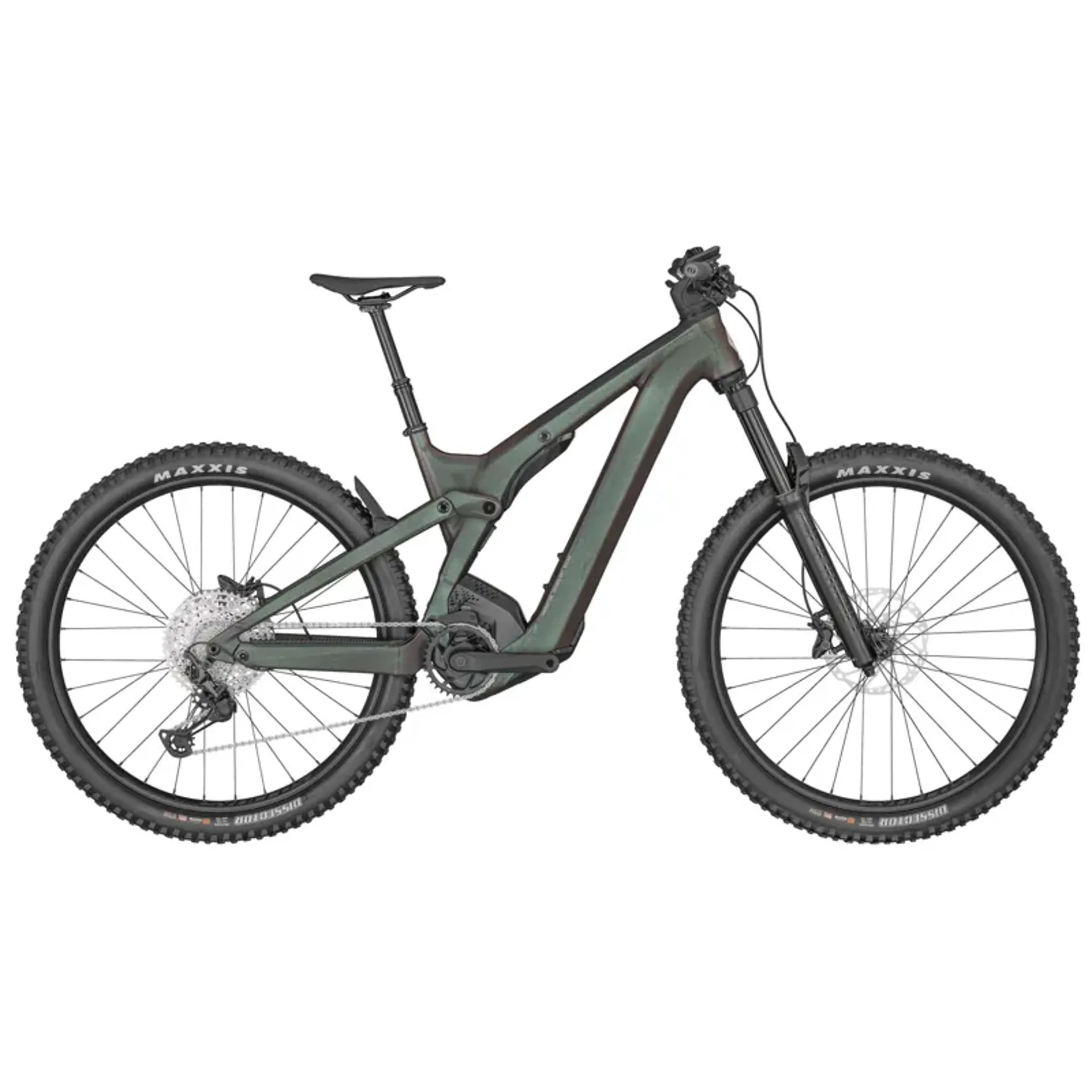

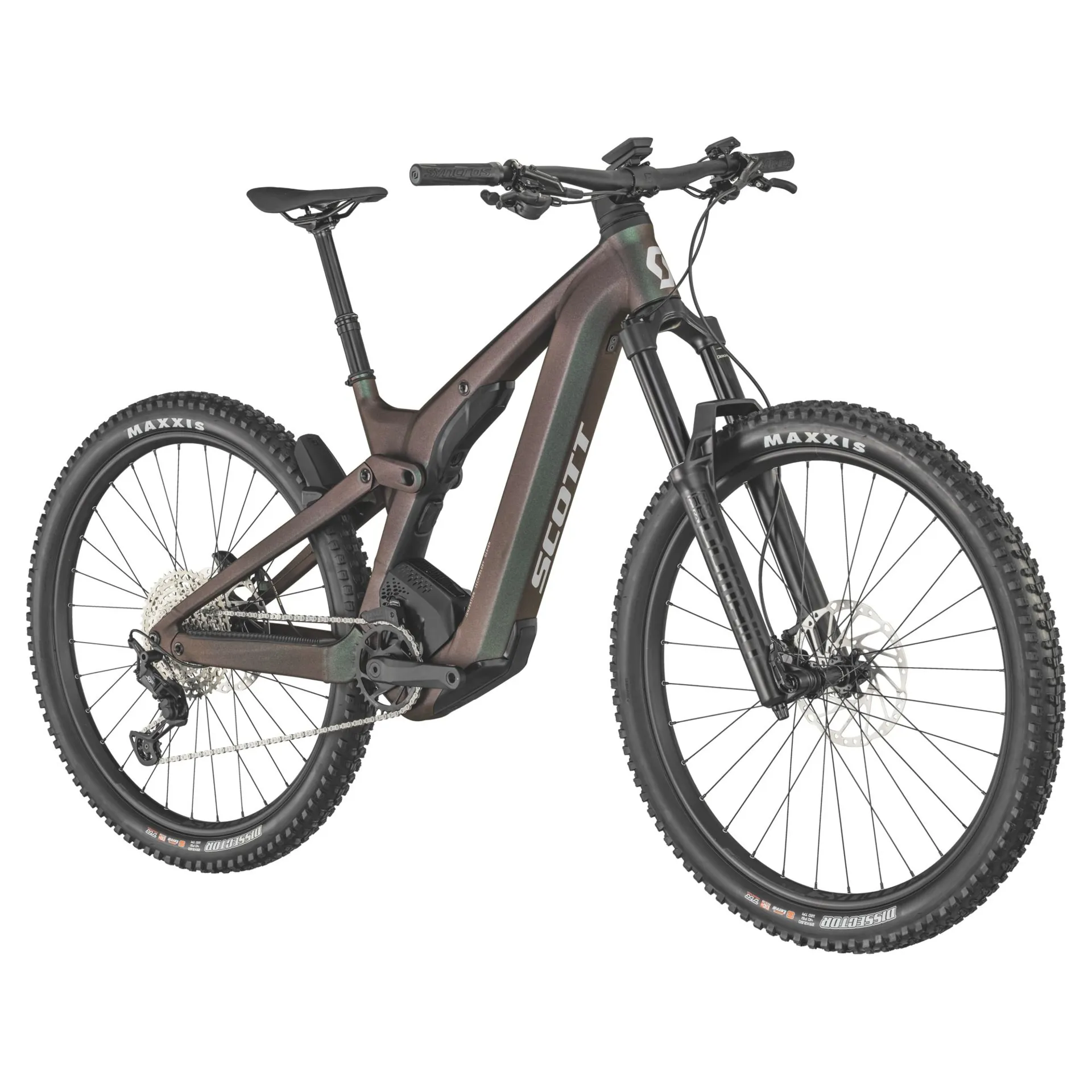

Scott Patron eRIDE 920 Electric Mountain Bike in Black

£3,591.00 £5,699.00 37% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Scott Patron eRIDE 920 Electric Mountain Bike in Black

Season:2024

Brand:Scott

Code:290560

The Patron eRIDE 920 was designed as a system optimized for all day trail riding.

Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.

Features:
  • Patron eRIDE Alloy Frame
  • RockShox Domain 160mm Fork
  • FOX Float EVOL eRIDE, 160mm, TwinLoc
  • Shimano XT-Deore 12 Speed
  • Bosch CX, 750Wh PowerTube / SmartSystem
  • SRAM DB8 4 Piston Disc
Technical Information
  • FRAME
    Alloy Frame & Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch Gen4 / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable
  • TRAVEL
    Front: 160mm / Rear: 160mm
  • FORK
    RockShox Domain Air, 15x110mm QR axle / 1.8" Tapered Steerer, Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
  • REAR SHOCK
    FOX Float EVOL eRIDE Trunnion, 3 modes / Lockout-Trail-Descend, DPS / Reb. Adj., Travel 160mm / 205x60mm
  • REMOTE SYSTEM
    SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 modes
  • DRIVE UNIT
    Bosch Performance CX, EU: 25kmh / INT: 20mph
  • BATTERY
    PowerTube 750Wh
  • DISPLAY
    Bosch LED Remote & Kiox 300
  • CHARGER
    4A Charger
  • REAR DERAILLEUR
    Shimano XT / 12 Speed
  • SHIFTERS
    Shimano SL-M6100
  • CRANKSET
    FSA CK-745 165mm / 34T
  • CHAINGUIDE
    e*thirteen / e*spec Slider
  • CHAINRING
    FSA W0138+WB499 / 34T / Steel
  • CHAIN
    Shimano CN-M6100
  • CASSETTE
    Shimano CS-M6100 / 10-51 T
  • BRAKES
    SRAM DB8 4 Piston Disc
  • ROTOR
    Centerline CL Rotors 200mm F&R
  • HANDLEBAR
    Syncros Hixon 2.0 / Alloy 6061D.B., 12mm rise / 9° / 780mm, Syncros Endurance lock-on grips
  • H'STEM
    Syncros AM2.0 / 6061 Alloy, 31.8mm / 4° / 1 1/8"
  • SEATPOST
    Syncros Duncan Dropper Post 2.5, 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm
  • SEAT
    Syncros Tofino 2.5 Regular
  • HEADSET
    Acros / 1.8", ZS66 OD74 / integr. Cable
  • HUB (FRONT)
    Formula CL-811 / 15x110mm
  • HUB (REAR)
    Formula ECT-1481 / Boost 148x12mm
  • SPOKES
    Stainless Black
  • RIMS
    Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready
  • FRONT TIRE
    Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra
  • REAR TIRE
    Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra
  • LIGHTS
    Syncros integrated rear fender light, Front Light Cable pre-installed
  • APPROX WEIGHTS IN KG
    26.5 (with tubes)
  • APPROX WEIGHTS IN LBS
    58.42 (with tubes)
  • MAX. SYSTEM WEIGHT
    128kg
Sizing Information
SMLXL
Ahead tube angle64.5 °65.0 °65.0 °65.0 °
Bhead tube length120.0 mm125.0 mm135.0 mm145.0 mm
Ctop tube horizontal579.4 mm595.0 mm625.6 mm656.4 mm
Dstandover height766.0 mm766.0 mm766.0 mm766.0 mm
EBB offset-30.0 mm-30.0 mm-30.0 mm-30.0 mm
FBB height347.0 mm347.0 mm347.0 mm347.0 mm
Gwheel base1,221.7 mm1,231.7 mm1,263.7 mm1,295.4 mm
HBB center to toptube center
IBB center to top of seattube410.5 mm440.5 mm470.4 mm500.4 mm
Jseat angle77.0 °76.9 °76.9 °76.8 °
Kchainstay454.0 mm454.0 mm454.0 mm454.0 mm
Lreach432.7 mm445.8 mm473.6 mm501.2 mm
Mstack634.8 mm642.2 mm651.3 mm660.4 mm
Nstem length50.0 mm50.0 mm60.0 mm60.0 mm
0trail133.3 mm129.5 mm129.5 mm129.5 mm
PFork length567.1 mm567.1 mm567.1 mm567.1 mm
QMaximum Seatpost Insertion245.0 mm265.0 mm300.0 mm320.0 mm
RCrank Length165.0 mm165.0 mm165.0 mm165.0 mm
