Santa Cruz

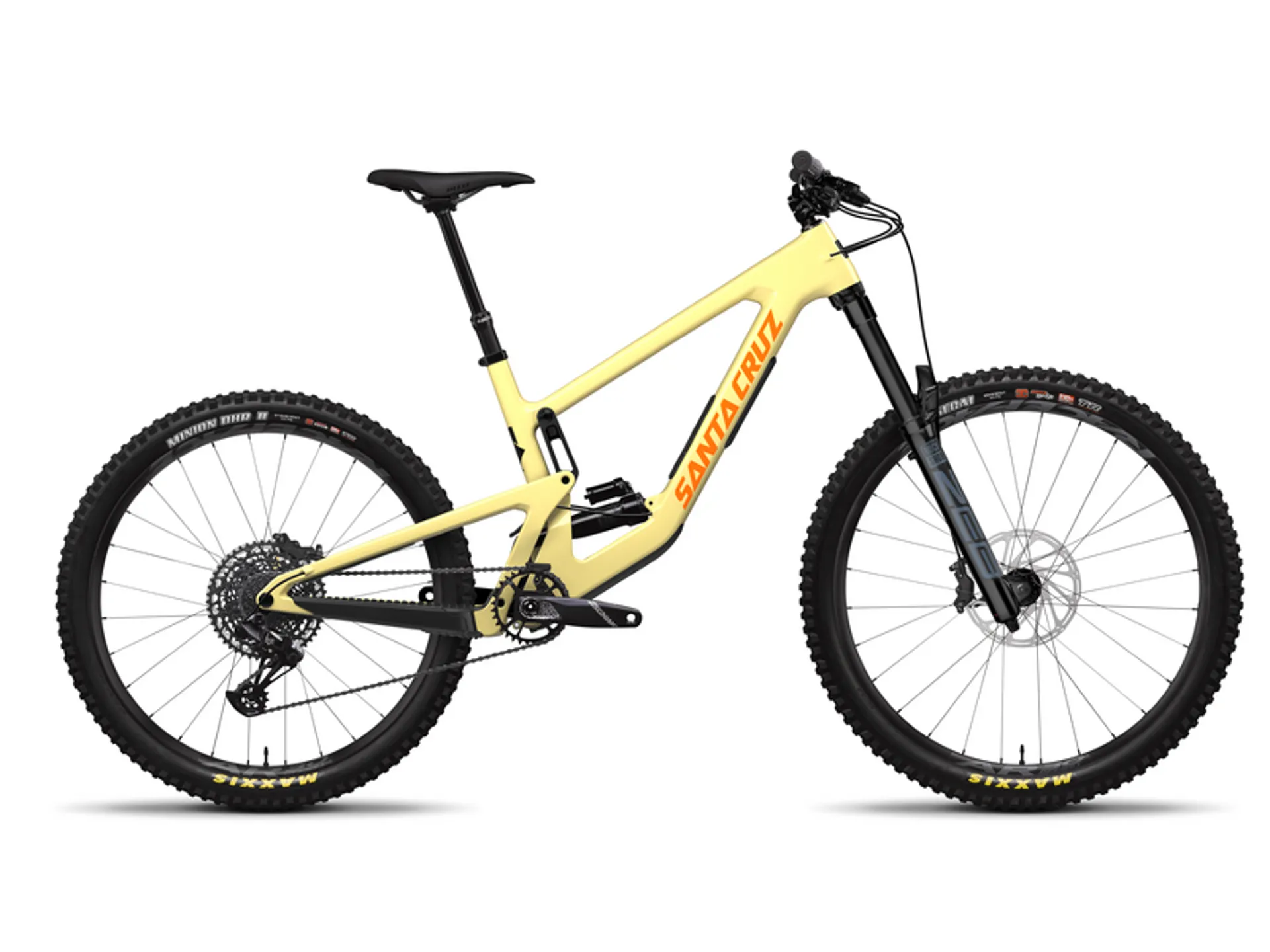

Santa Cruz Nomad 6 C MX 24 R-Kit

£4,999.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Santa Cruz Nomad 6 C MX 24 R-Kit

Season:2024

Brand:Santa Cruz

Code:SC-B-69-24280-147

We say
Everything you need and nothing you don’t. NX groupset shifts reliably and keeps the price the on right side of the line.

Zeb Rs are easy to set up to get maximum enjoyment and the finishing kit includes MaxxGrip compound front tyres and Exo+ casings front and rear.


What they say

Load up the van, hit the road, climb a mountain, hammer it back down, huck the gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the startline of the world's wildest races. The Nomad’s forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.

Available in: Carbon C & Carbon CC
Wheel size: MX
Front travel: 170mm
Rear travel: 170mm


All the travel anyone needs in a single-crown bike intended for the steepest and deepest of trails.
VPP™ suspension can be optimized to strike a balance between pedaling efficiency and all-out bump-chomping prowess. The Nomad is exceptional at absorbing the biggest hits so its rider can charge harder, with more confidence, in the very worst terrain. But because it's still pedal efficient, getting up to the best, highest trails isn't a chore like some other bikes.

Sensitivity and constant traction
On the Nomad, lowering the anti-squat reduced pedal kickback on big square-edge hits at speed, all while improving the overall sensitivity of the suspension to maintain traction at all speeds. Up and downhill.

Flat-out bump control and tracking
By reducing the starting leverage of the latest Nomad, we were able to improve body-weight influenced geometry stability throughout the travel. While reducing progression allowed the suspension to have consistently better tracking qualities throughout the stroke.

Built to last

Short, stout counter-rotating links connect the front and rear triangles to create an extremely robust chassis that reduces lateral flex. Simple expanding collet axles hold things together, pivots run on large diameter axles and bearings (which we offer free lifetime replacement for) and the lower link includes a grease-port for quick, easy maintenance.

Frame stiffness tuned by size
Bigger riders means bigger stresses on bigger frames. So we tailor stiffness for every size to make sure everyone gets the same ride quality.

Details matter

The details are completed by a neat mud flap to protect the rear shock plus tidy cable routing within the frame and swingarm, and rubberized DT protectors to shrug off strikes.
R - Base model with same tires and big rotors as all Nomads. Quality suspension, just without all the external tuning dials.
S - Upgraded wheels, headset, and dropper post. Suspension with more adjustment, SRAM Eagle cable-operated drivetrain and 4-piston SRAM brakes.
GX AXS - Full SRAM GX Eagle electronic Transmission and the most powerful SRAM Maven brakes.
X0 AXS - CC carbon frame, full SRAM X0 T-TYPE electronic drivetrain, top spec suspension and Industry Nine hubs and powerful SRAM Maven Silver Stealth brakes
X0 AXS RSV - CC carbon frame, full SRAM X0 T-TYPE electronic drivetrain, top spec suspension and SRAM Maven Silver Stealth brakes, plus legendary carbon Reserve wheels on Industry Nine hubs.
Technical Information
Santa Cruz Nomad Features
  • Fork Travel: 170mm
  • Fork Compatibility: 170mm-180mm
  • Frame Travel: 170mm
  • Shock Size: 230x65
  • ICSG-05 Tabs: Yes
  • Brake Mounts: 200mm PM
  • Headset: Integrated (IS41/52)
  • Seatpost Diameter: 31.6mm
  • Seat Clamp Diameter: 36.4mm
  • BB Shell: 73mm Threaded
  • Max Tyre Size: 2.5"
  • Max Chaingring Size: 34t
  • Shock Mounting Bushing Front: 30x8
  • Shock Mounting Bushing Rear: 30x8
  • Derailleur Hanger: Santa Cruz (SRAM) UDH

Santa Cruz Nomad Carbon C - R Kit

Fork
RockShox Zeb R, 170mm		Shock
RockShox Super Deluxe Select, 230x65		Rear Derailleur
SRAM NX Eagle, 12spd
Shifter
SRAM NX Eagle, 12spd		Crankset
SRAM Descendant Eagle 148 DUB 32t		Cassette
SRAM PG1230, 12spd, 11-50t
Chain
SRAM NX Eagle, 12spd		Brakes
SRAM G2 RE		Rotors
Avid Centerline 200mm
Handlebars
E13 TRS Base, 800mm		Stem
E13 Base, 40mm		Grips
Santa Cruz House Grips
Headset
FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated		Seatpost
SDG Tellis		Saddle
WTB Silverado Medium CroMo
Front Tyre
Maxxis Assegai 29"x2.5" 3C MaxxGrip, EXO+, TR		Rear Tyre
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+, TR		Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h		Rims
RaceFace AR Offset 30		Spokes
Sapim Race
Sizing Information

Frame Sizing

If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

The Nomad is available in sizes small - extra extra large (S-XXL).

Geometry

All units are in millimeters or degrees.

SMLXLXXL
Reach |hi/lo430/427455/452475/472495/492520/517
Stack |hi/lo616/618625/627638/640656/658670/672
Head Tube Angle |hi/lo63.8/63.563.8/63.563.8/63.563.8/63.563.8/63.5
Seat Tube Length380/380405/405430/430460/460500/500
Front Center |hi/lo770/770799/799826/826855/855886/886
BB Height |hi/lo346/343346/343346/343346/343346/343
BB Drop (front) |hi/lo27/3027/3027/3027/3027/30
BB Drop (rear) |hi/lo8/118/118/118/118/11
Wheelbase |hi/lo1209/12091239/12401269/12701301/13021336/1337
Rear Center |hi/lo439/440440/441443/444446/447450/451
Head Tube Length90/90100/100115/115135/135150/150
Top Tube Length |hi/lo570/571594/594612/613637/638666/667
Seat Tube Angle |hi/lo77.2/7777.4/77.277.9/77.677.8/77.577.7/77.5
Standover Height |hi/lo709/705716/713723/719722/717725/720
